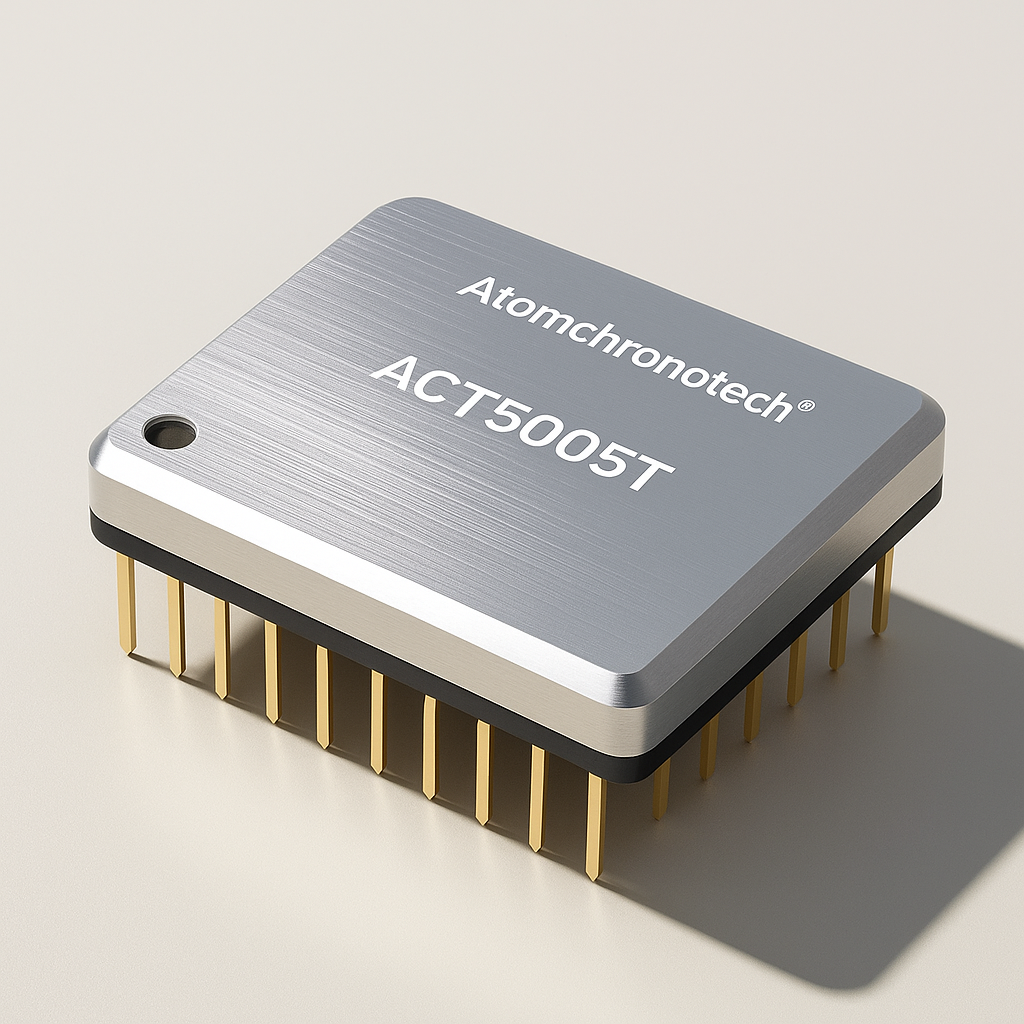

ACT5005T Compact Quartz Oscillator (TCXO)
The ACT5005T is a high-performance quartz oscillator designed for applications requiring exceptional frequency stability and wide tuning flexibility. With its Absolute Pull Range (APR) of ±0.5 ppm, it is ideal for critical applications across telecommunications, navigation, and industrial systems.
The ACT5005T provides exceptional precision with an APR of ±0.5 ppm, delivering robust and consistent performance for critical applications that demand reliability and accuracy in a compact form factor.
Features
- - Wide tuning range: ±0.5 ppm APR
- - Compact dimensions: 20×15×6 mm
- - Low power consumption: ≤50 mW
- - Stable performance over a wide temperature range: -40°C to +85°C
- - Designed for precision timing in challenging environments
Main Specifications
| Output Frequency | |
| Value | 10 MHz (CMOS logic) |
| Absolute Pull Range (APR) | |
| Value | ±0.5 ppm |
| Frequency Tolerance | |
| Value | ±0.2 ppm at 25°C |
| Short-term Stability (Allan Deviation) | |
| 1s | ≤5×10⁻¹⁰ |
| 10s | ≤1×10⁻¹⁰ |
| Temperature Stability | |
| Value | ±0.1 ppm (-40°C to +85°C) |
| Aging Rate | |
| Daily | ≤1×10⁻¹⁰/day |
| Yearly | ≤1 ppm/year |
| Power Consumption | |
| Steady-State Mode | ≤50 mW |
| Startup Current | ≤150 mW |
| Warm-Up Time | |
| Value | ≤15 seconds |
| Output Signals | |
| Logic Level | CMOS |
| Signal Amplitude | VOH ≥ 2.5 V, VOL ≤ 0.3 V |
| Output Load | 15 pF |
| Phase Noise | |
| @ 1 Hz | -65 dBc/Hz |
| @ 10 Hz | -90 dBc/Hz |
| @ 100 Hz | -115 dBc/Hz |
| @ 1 kHz | -130 dBc/Hz |
| Environmental Specifications | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Shock Resistance | 30 G, 11 ms duration |
| Vibration Resistance | 10 Hz to 500 Hz, 5 G |
Product Applications
- - Telecommunications: Accurate timing for synchronized network systems
- - Navigation: High-stability frequency reference for GPS applications
- - Industrial Systems: Reliable operation in rugged conditions
- - Consumer Devices: Compact and efficient timing solutions
