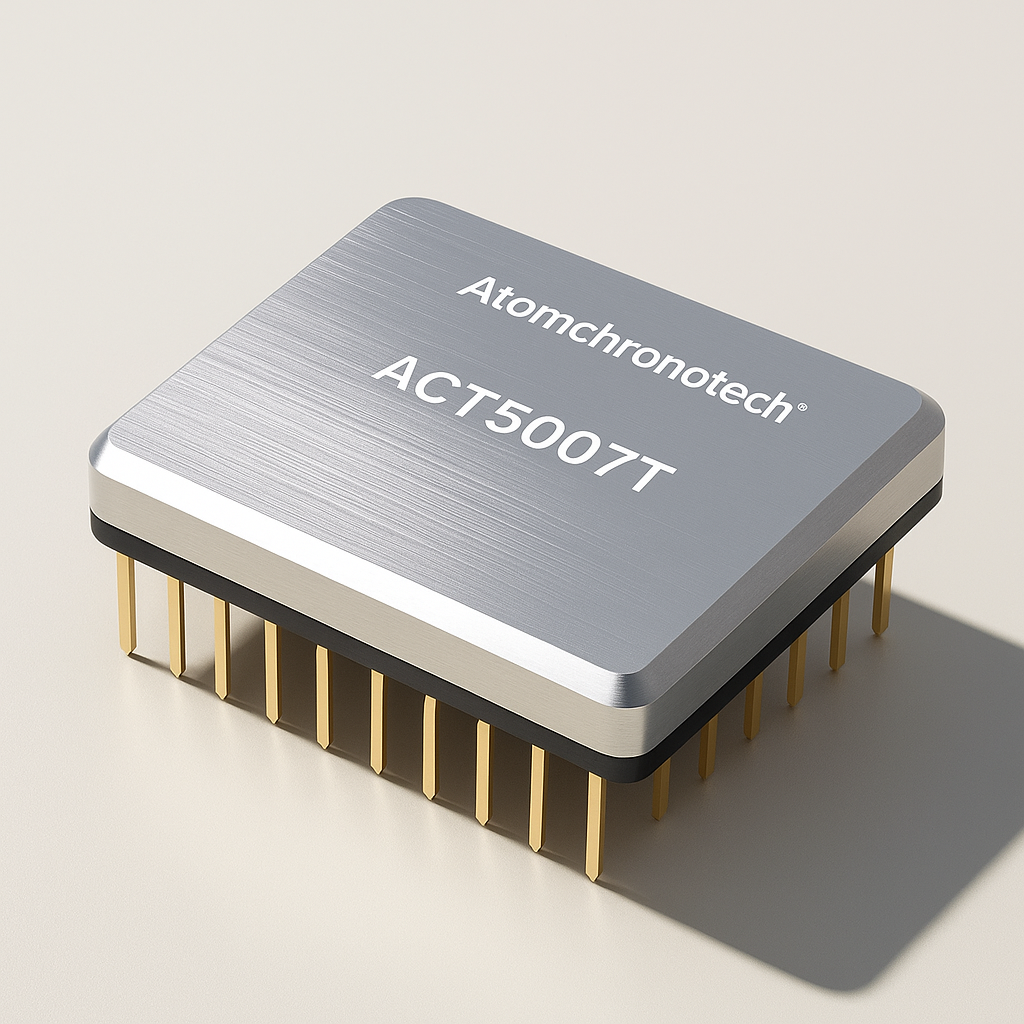

ACT5007T Compact Quartz Oscillator (TCXO)
The ACT5007T offers high precision and exceptional frequency tuning with an Absolute Pull Range (APR) of ±2 ppm. Designed for demanding environments, this oscillator provides reliable and stable performance for critical timing applications in telecommunications, navigation, and industrial systems.
The ACT5007T combines precise tuning and robust design, offering an APR of ±2 ppm, making it ideal for applications requiring high performance and stability in a compact form factor.
Features
- - Broad tuning flexibility: ±2 ppm APR
- - Compact dimensions: 20×15×6 mm
- - Low power consumption: ≤65 mW
- - High temperature stability: ±0.4 ppm
- - Reliable operation in extended temperature ranges: -40°C to +85°C
Main Specifications
| Output Frequency | |
| Value | 10 MHz (CMOS logic) |
| Absolute Pull Range (APR) | |
| Value | ±2 ppm |
| Frequency Tolerance | |
| Value | ±0.3 ppm at 25°C |
| Short-term Stability (Allan Deviation) | |
| 1s | ≤7×10⁻¹⁰ |
| 10s | ≤2×10⁻¹⁰ |
| Temperature Stability | |
| Value | ±0.4 ppm (-40°C to +85°C) |
| Aging Rate | |
| Daily | ≤2.5×10⁻¹⁰/day |
| Yearly | ≤2.5 ppm/year |
| Power Consumption | |
| Steady-State Mode | ≤65 mW |
| Startup Current | ≤200 mW |
| Warm-Up Time | |
| Value | ≤25 seconds |
| Output Signals | |
| Logic Level | CMOS |
| Signal Amplitude | VOH ≥ 2.5 V, VOL ≤ 0.3 V |
| Output Load | 15 pF |
| Phase Noise | |
| @ 1 Hz | -60 dBc/Hz |
| @ 10 Hz | -85 dBc/Hz |
| @ 100 Hz | -110 dBc/Hz |
| @ 1 kHz | -125 dBc/Hz |
| Environmental Specifications | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Shock Resistance | 20 G, 11 ms duration |
| Vibration Resistance | 10 Hz to 500 Hz, 5 G |
Product Applications
- - Telecommunications: Stable frequency generation for synchronized networks
- - Navigation: Precise timing for GPS receivers
- - Industrial Automation: Reliable performance under demanding conditions
- - Scientific Instruments: Accurate timing for measurement systems
