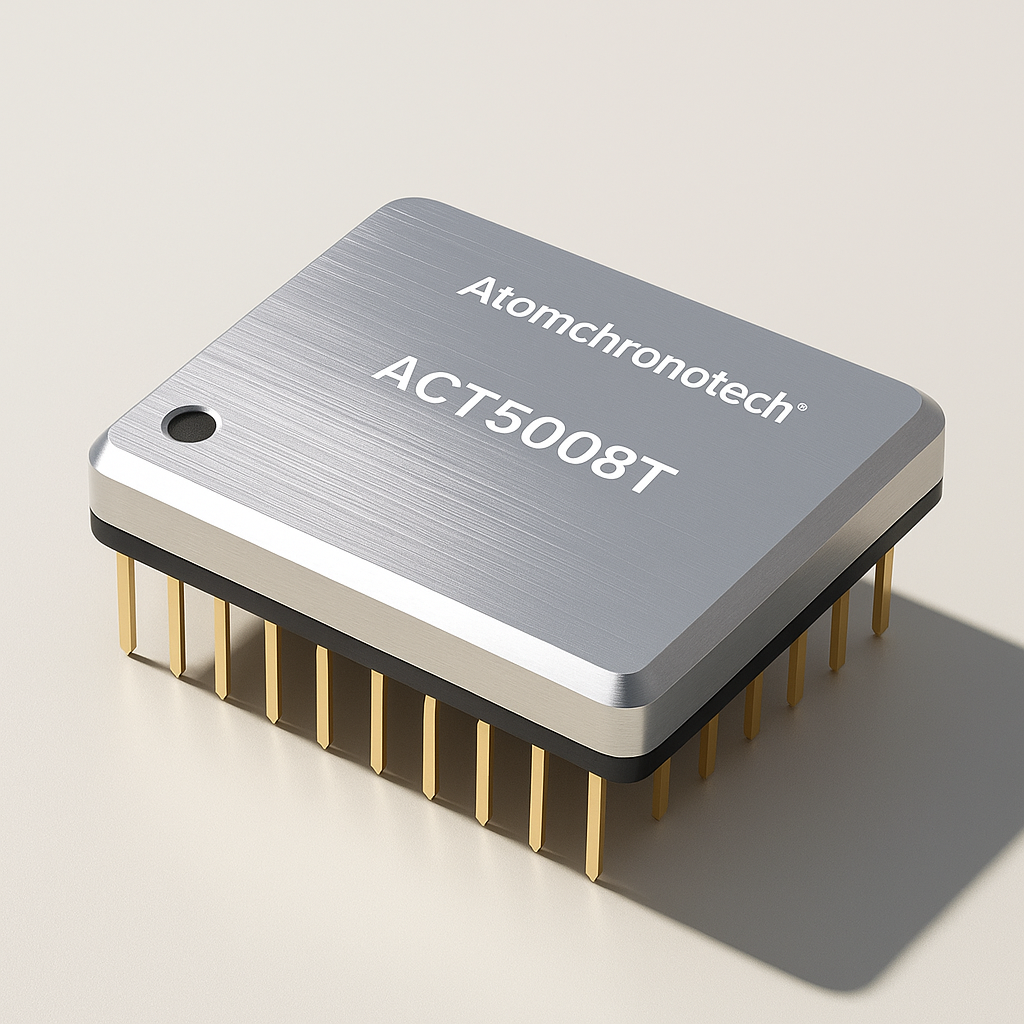

ACT5008T Compact Quartz Oscillator (TCXO)
The ACT5008T is a high-performance compact quartz oscillator that delivers reliable and stable frequency output. With an Absolute Pull Range (APR) of ±2.5 ppm, it is ideal for applications requiring precise tuning and excellent temperature stability across a wide range of environments.
The ACT5008T provides an APR of ±2.5 ppm, offering flexibility and precision in a compact design, making it an excellent choice for a variety of high-performance applications.
Features
- - Wide tuning range: ±2.5 ppm APR
- - Compact dimensions: 20×15×6 mm
- - Low power consumption: ≤70 mW
- - High temperature stability: ±0.5 ppm
- - Wide operating temperature range: -40°C to +85°C
Main Specifications
| Output Frequency | |
| Value | 10 MHz (CMOS logic) |
| Absolute Pull Range (APR) | |
| Value | ±2.5 ppm |
| Frequency Tolerance | |
| Value | ±0.4 ppm at 25°C |
| Short-term Stability (Allan Deviation) | |
| 1s | ≤8×10⁻¹⁰ |
| 10s | ≤2.5×10⁻¹⁰ |
| Temperature Stability | |
| Value | ±0.5 ppm (-40°C to +85°C) |
| Aging Rate | |
| Daily | ≤2.5×10⁻¹⁰/day |
| Yearly | ≤3 ppm/year |
| Power Consumption | |
| Steady-State Mode | ≤70 mW |
| Startup Current | ≤200 mW |
| Warm-Up Time | |
| Value | ≤25 seconds |
| Output Signals | |
| Logic Level | CMOS |
| Signal Amplitude | VOH ≥ 2.5 V, VOL ≤ 0.3 V |
| Output Load | 15 pF |
| Phase Noise | |
| @ 1 Hz | -60 dBc/Hz |
| @ 10 Hz | -85 dBc/Hz |
| @ 100 Hz | -110 dBc/Hz |
| @ 1 kHz | -125 dBc/Hz |
| Environmental Specifications | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Shock Resistance | 20 G, 11 ms duration |
| Vibration Resistance | 10 Hz to 500 Hz, 5 G |
Product Applications
- - Telecommunications: Reliable synchronization for network systems
- - Navigation Systems: Stable timing for GPS and autonomous navigation
- - Industrial Electronics: Precise timing for automation and control systems
- - Portable Devices: Compact timing solutions for handheld devices
